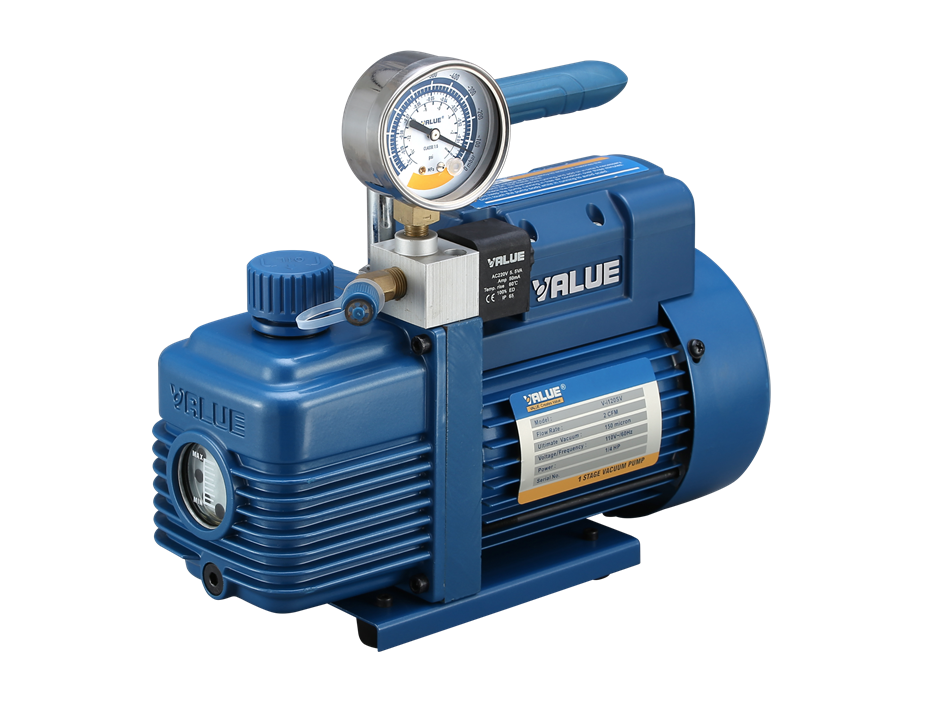

Vacuum pump Value V-i260SV, 142 l/min, 15 microns, 5 CFM

Flow: 142 l/min; 5 CFM

Vacuum Level: 15 microns

Motor Power: 0,55 kW (0,75 KM)

Compression Stages: 2

Power Supply: 230 V

Frequency: 50 - 60 Hz

Power Cord Length: 200 cm

Motor Speed at 50 Hz: 1400 rpm

Noise Level: 68 dB

Inlet Connection: 1/4" SAE

Oil Capacity: 0,2 l

Oil Type: mineral, viscosity: 46 mm²/s

Dimensions: 395 x 145 x 318 mm

Weight: 16,6 kg

Protection Class: IP44

Operating Temperature: 5 - 40°C

Storage Temperature: -20 - 60°C

Minimum Oil Temperature for Startup: 5°C

Shut-Off Valve: Yes

Exhaust Plug Thread: M33 x 1,5 mm

Vacuum Gauge: External

Vacuum Gauge Size: 80 mm

Vacuum Gauge Accuracy: class 1.6
