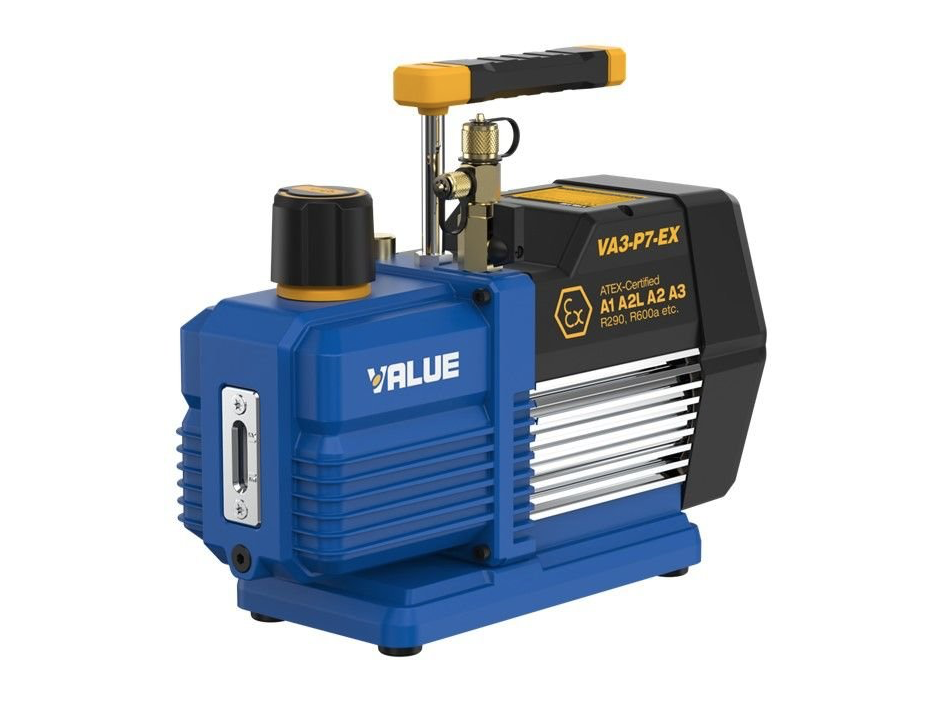

Vacuum pump Value VA3-P7-EX, 198 l/min, 15 microns, 7 CFM, R290A, R600

Compatibility with R290, R600a,  as well as HFC, HFO, A1, A2L and A2 refrigerants.

Flow: 198 l/min, 7 CFM

Vacuum Level: 15 microns

Motor Power: 0,55 kW

Compression Stages: 2

Power Supply: 230 V

Frequency: 50 - 60 Hz

Power Cord Length: 310 cm

Motor Speed at 50 Hz: 2880 rpm

Noise Level: 68 dB

Inlet Connection: 1/4”, 3/8” SAE

Oil Capacity: 0,426 l

Oil Type: mineral, viscosity: 46 mm²/s

Dimensions: 346 x 130 x 287 mm

Weight: 11,8 kg

Protection Class: IP54

Operating Temperature: -1 - 40°C

Storage Temperature: -1 - 50°C

Minimum Oil Temperature for Startup: -1°C

Shut-Off Valve: Yes (manual)

Exhaust Plug Thread: M33 x 1,5 mm

Vacuum Gauge: No
