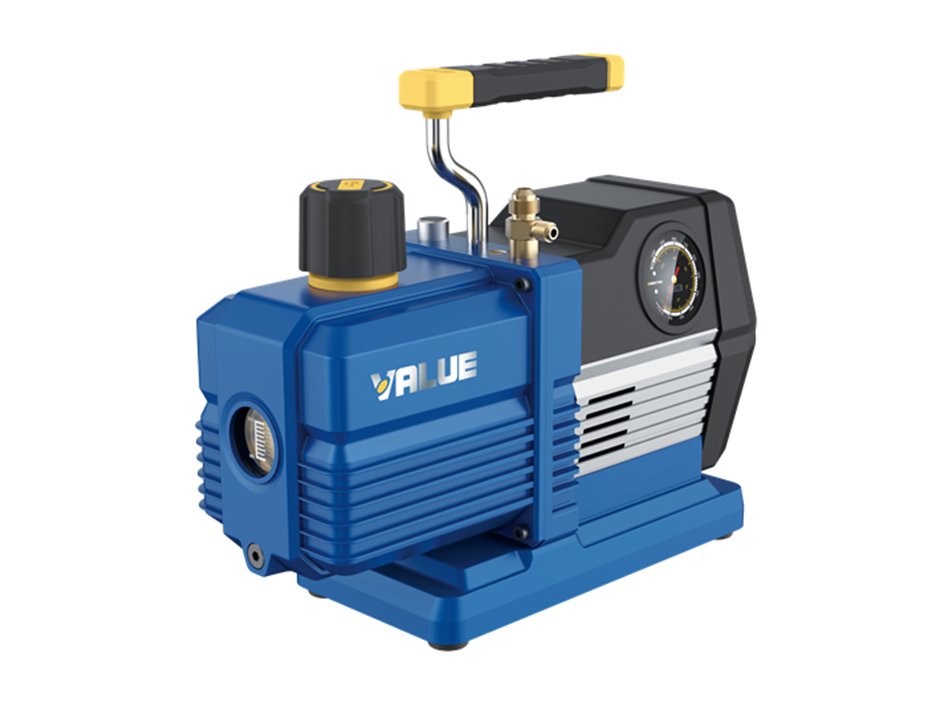

Vacuum pump Value VRP-6DV-32, 170 l/min, 15 microns, 6 CFM

Flow: 170 l/min; 6 CFM

Vacuum Level: 15 microns

Inlet Connection: 1/4" and 3/8" SAE

Motor Power: 0,55 kW

Compression Stages: 2

Power Supply: 230 V

Frequency: 50 - 60 Hz

Power Cord Length: 200 cm

Motor Speed at 50 Hz: 2000 rpm

Noise Level: 68 dB

Oil Capacity: 0,6 l

Oil Type: mineral, viscosity: 68 mm²/s

Dimensions: 346 x 145 x 302 mm

Weight: 11,5 kg

Protection Class: IP44

Operating Temperature: 5 - 40°C

Storage Temperature: -20 - 60°C

Minimum Oil Temperature for Startup: 5°C

Shut-Off Valve: Yes

Exhaust Plug Thread: M33 x 1,5 mm

Vacuum Gauge: Internal

Vacuum Gauge Size: 63 mm

Vacuum Gauge Accuracy: class 1.6
