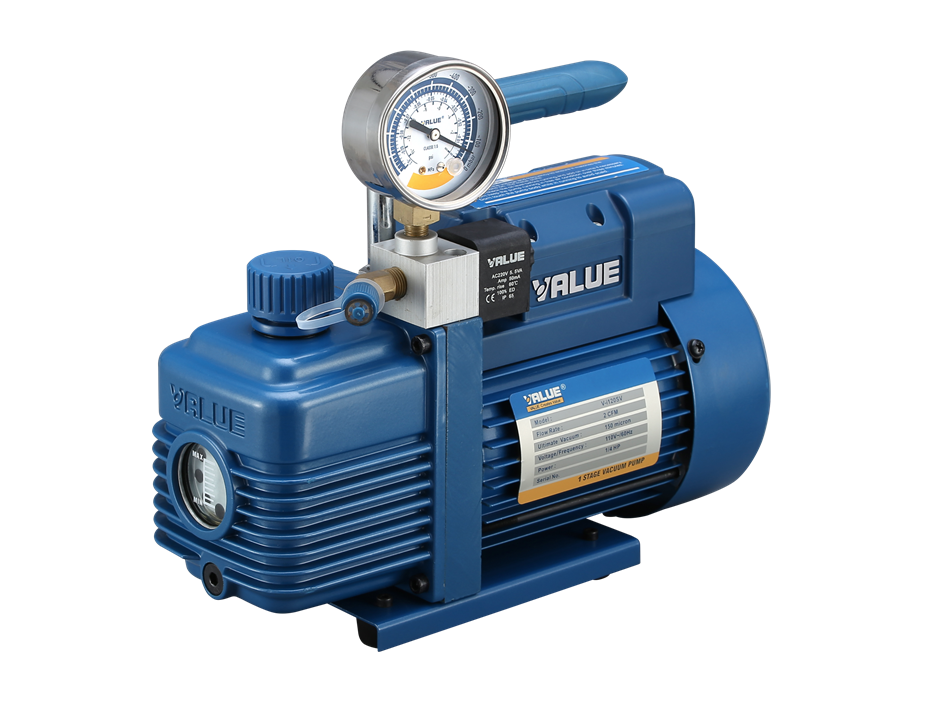

Value vacuum pump V-i220SV, 51 l/min, 15 microns, 1,8 CFM

Flow: 51 l/min; 1,8 CFM

Vacuum Level: 15 microns

Motor Power: 0,24 kW

Compression Stages: 2

Power Supply: 230 V

Frequency: 50 - 60 Hz

Power Cord Length: 200 cm

Motor Speed at 50 Hz: 1400 rpm

Noise Level: 65 dB

Inlet Connection: 1/4" SAE

Oil Capacity: 0,2 l

Oil Type: mineral, viscosity: 46 mm²/s

Dimensions: 318 x 124 x 265 mm

Weight: 9,0 kg

Protection Class: IP44

Operating Temperature: 5 - 40°C

Storage Temperature: -20 - 60°C

Minimum Oil Temperature for Startup: 5°C

Shut-Off Valve: Yes

Exhaust Plug Thread: M24 x 1,5 mm

Vacuum Gauge: external

Vacuum Gauge Size: 63 mm

Vacuum Gauge Accuracy: class 1.6
